GENERAL EXPLANATION

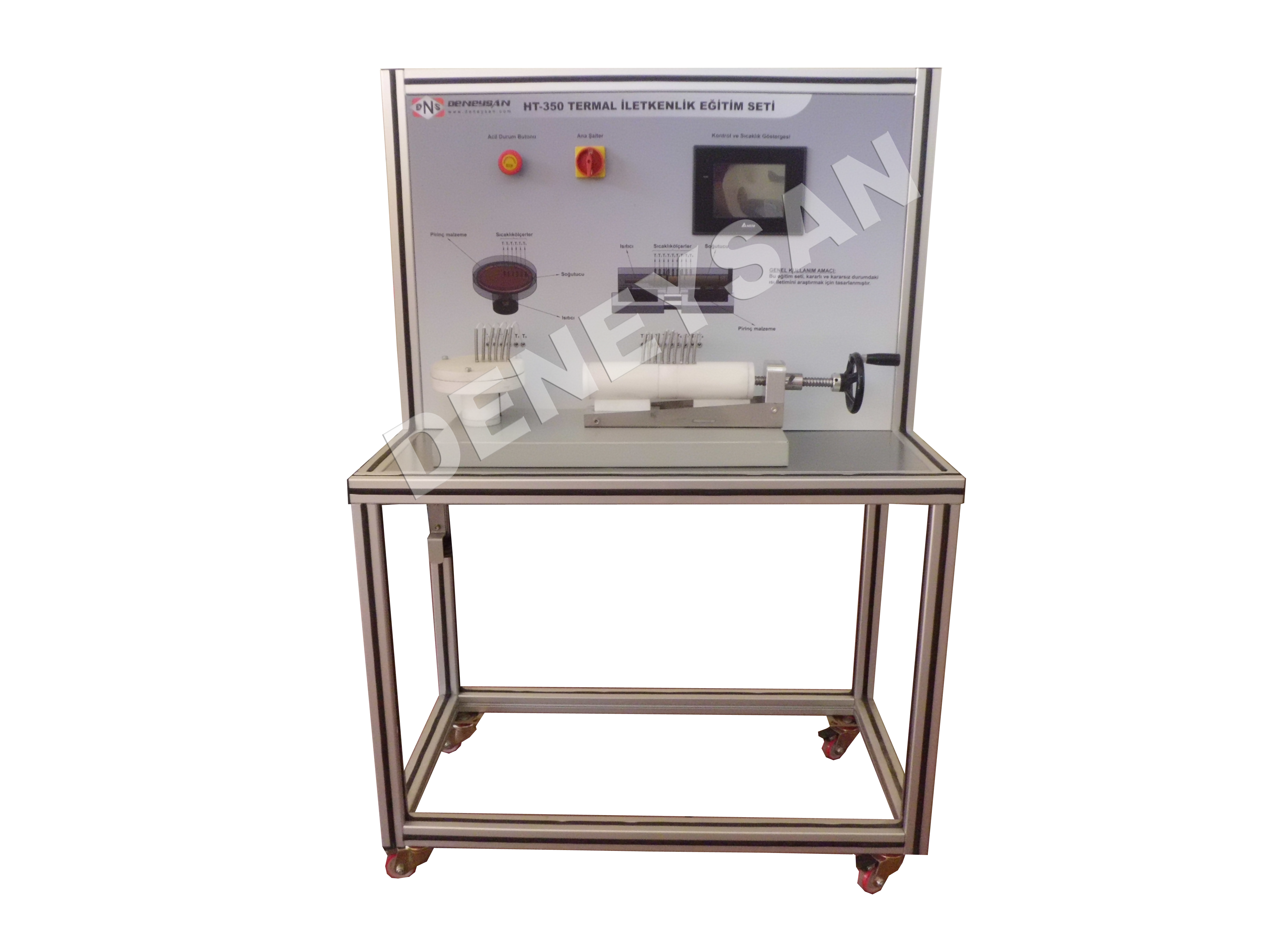

This training set is designed to investigate radial and linear heat conduction.

TECHNICAL SPECIFICATION

In heterogeneous temperature differences over or on the whole, materials tend to transfer the heat energy inside it, by atomic vibrations, convection and radiation, to obtain a homogeneous distribution. The geometric structure of the part in the conduction of heat with atomic vibrations brings about differences in heat conduction. In the device, thermal conductivity and differences are measured with radial and linear parts used in experiments.

TECHNICAL DETAILS

Linear and radial heat conduction system

15 temperature measuring sensors

100W linear heater power

100W radial heater power

-20 to 200 ° C measurement range

Water cooling system

Digital measurement of electrical data

OPTIONAL FEATURES

Touch LCD Display

USB Computer Connection

Computer Control

PACKAGE INCLUDED

Device, device cover, 1 printed experiment report, circuit diagram and product catalog

DEVICE MEASUREMENTS

A x B x H: 900 x 480 x 1240 mm
